* SpO2 Accuracy:
No Motion:
Adults, Pediatrics: 70~100% ±2%
0~69% unspecified
Neonates: 70~100% ±3%
0~69% unspecified
Motion:
Adults, Pediatrics: 70~100% ±3%
0~69% unspecified
Neonates: 70~100% ±4%
0~69% unspecified
Low Perfusion:
Adults, Pediatrics: 70~100% ±3%
0~69% unspecified
Neonates: 70~100% ±4%
0~69% unspecified
* Pulse Rate Accuracy
No Motion:
Adults, Pediatrics, Neonates: ±3%
Motion:
Adults, Pediatrics, Neonates: ±5%
Low Perfusion:
Adults, Pediatrics, Neonates: ±5%
* Displays and Indicators
SpO2, Pulse Rate and Pulse Strength Bar
Pulse Search Indicator
Low Perfusion and Motion Warning Indicator
Alarm Silence Indicator
AC Power and Battery Charge Indicator
Low Battery Warning Indicator
Sensor Disconnect and Sensor off Warning Indicator
* Alarm
Audible/Visual Alarms for High/Low SpO2 and PR
Audible/Visual Alarms for Low-Battery
Alarm Limits Adjustable
Alarm Volume Adjustable
Pulse Search Indicator
Alarm Silence Interval:30,60,90and120sec and OFF
Low Perfusion and Motion Warning Indicator
Sensor Disconnect Alarm
Sensor off Alarm
* Performance Measurement Range
SpO2:0～100%
Pulse Rate: 20bpm~250bpm
* Environment
Opreation Temperature: 5～40℃
41~104℉
Humidity: ≤80%
Altitude: -390~5,000m(-1,280~16,404ft)
Transport/Storage Temperature:
-20～+70℃ (-4℉~158℉)
Humidity: ≤95%
* Output
RS-232 Serial Port for Digital Output
Nurse Call Function
* Electrical Instrument
Power Requirements:
100~240VAC, 50/60Hz, 20VA
Fuse Rating: 1.0A
* Battery
Internal Battery: 12V 3.6Ah
Battery Capacity: ≥ 24 hours
* Physical Characteristics
Dimensions:
264mm(W) x 95mm(H) x 172mm(D)
[10.39in(W) x 3.74in(H) x 6.77in(D)
Net Weight: 2.5kg/5.5ib
Gross Weight: 3.5kg/7.7ib
*Compliance
SpO2: ISO9919:2005
Safety Standards:
En60601-1: 1990+A1: 1993+A2: 1995+A13: 1996 Type BF-Applied
IPX1 Approved
Alarm: IEC60601-1-1-8: 2005
EMC:EN60601-1-2: 2001, Group1 Class A
Environment: WEEE(2002/96/EC)

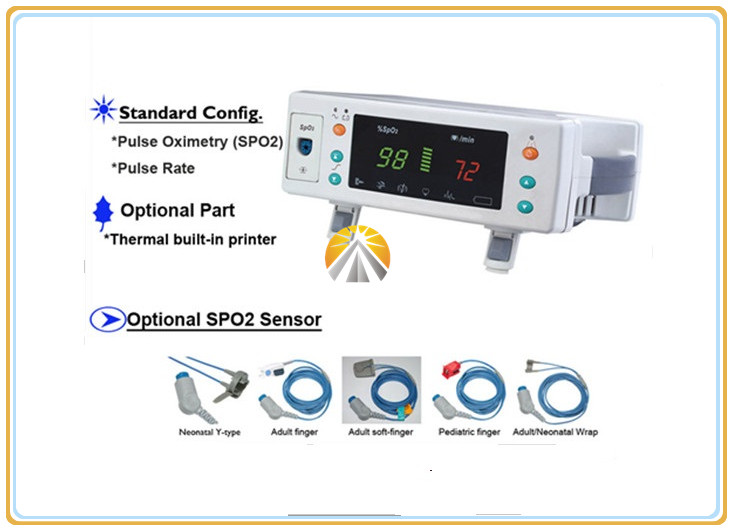

* Optional Part
Thermal Array Recorder to print Graphical and Tabular Trend
